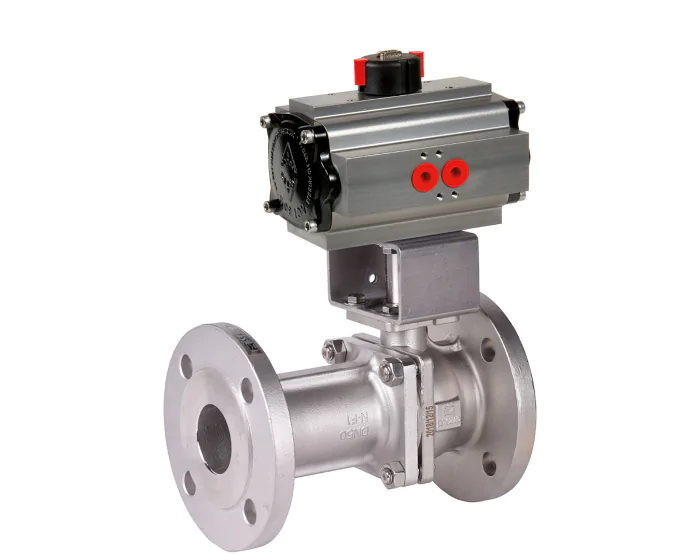

The 763L series stainless steel ball valve has a CF8M body and ball. It is actuated with pneumatic actuation ACTREG ADA/ASR, up to DN100. It has a split body, TS: -20°C/+200°C.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Operating angle (°) | 90 |
| Shaft/stem matérial | Stainless steel 316 |
| Adjustable limit screws | Yes |
| ATEX compatible | Yes |
| DN | DN15 - 1/2'' |
| Body material | Stainless steel CF8M (1.4408) |
| ATEX protection mode | Ex c |
| Number of ways | 2 |
| Bore | Full |
| Packing gland | PTFE - Graphite |
| PS (bar) | 40 |
| Connections | Flanged PN16/40 |
| Seats | PTFE |
| Ball material | Stainless steel 316 |
| Surface temperature | TX |
| Pneumatic actuator type | Double acting |
| Ball valve design | 2-piece body |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
| Range | Industry |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN16/40 Stainless steel CF8M (1.4408) Full 2-piece body DN15 - 1/2'' Double acting | 274462015100 | S1003078 |
€307.63
(excl. btw)
|
add to cart |
| Flanged PN16/40 Stainless steel CF8M (1.4408) Full 2-piece body DN15 - 1/2'' Spring return | 274462016101 | S1003079 |
€349.31
(excl. btw)
|
add to cart |
| Flanged PN16/40 Stainless steel CF8M (1.4408) Full 2-piece body DN20 - 3/4'' Double acting | 274463015100 | S1003080 |
€356.43
(excl. btw)
|
add to cart |
| Flanged PN16/40 Stainless steel CF8M (1.4408) Full 2-piece body DN20 - 3/4'' Spring return | 274463016101 | S1003081 |
€375.29
(excl. btw)
|
add to cart |
| Flanged PN16/40 Stainless steel CF8M (1.4408) Full 2-piece body DN25 - 1'' Double acting | 274464015100 | S1003082 |
€403.10
(excl. btw)
|
add to cart |
| Flanged PN16/40 Stainless steel CF8M (1.4408) Full 2-piece body DN25 - 1'' Spring return | 274464016101 | S1003083 |
€409.00
(excl. btw)
|
add to cart |
| Flanged PN16/40 Stainless steel CF8M (1.4408) Full 2-piece body DN32 - 1''1/4 Double acting | 274465015101 | S1003084 |
€455.46
(excl. btw)
|
add to cart |
| Flanged PN16/40 Stainless steel CF8M (1.4408) Full 2-piece body DN32 - 1''1/4 Spring return | 274465016102 | S1003085 |
€505.99
(excl. btw)
|
add to cart |
| Flanged PN16/40 Stainless steel CF8M (1.4408) Full 2-piece body DN40 - 1''1/2 Double acting | 274466015101 | S1003086 |
€541.01
(excl. btw)
|
add to cart |
| Flanged PN16/40 Stainless steel CF8M (1.4408) Full 2-piece body DN40 - 1''1/2 Spring return | 274466016103 | S1003087 |
€657.74
(excl. btw)
|
add to cart |
| Flanged PN16/40 Stainless steel CF8M (1.4408) Full 2-piece body DN50 - 2'' Double acting | 274467015102 | S1003088 |
€700.13
(excl. btw)
|
add to cart |
| Flanged PN16/40 Stainless steel CF8M (1.4408) Full 2-piece body DN65 - 2''1/2 Double acting | 274468015103 | S1003089 |
€1,007.76
(excl. btw)
|
add to cart |
| Flanged PN16/40 Stainless steel CF8M (1.4408) Full 2-piece body DN65 - 2''1/2 Spring return | 274468016104 | S1003090 |
€1,045.71
(excl. btw)
|
add to cart |
| Flanged PN16/40 Stainless steel CF8M (1.4408) Full 2-piece body DN80 - 3'' Double acting | 274469015103 | S1003091 |
€1,219.91
(excl. btw)
|
add to cart |
| Flanged PN16/40 Stainless steel CF8M (1.4408) Full 2-piece body DN80 - 3'' Spring return | 274469016105 | S1003092 |
€1,413.56
(excl. btw)
|
add to cart |
| Flanged PN16/40 Stainless steel CF8M (1.4408) Full 2-piece body DN100 - 4'' Double acting | 274470015104 | S1003093 |
€1,633.64
(excl. btw)
|
add to cart |
| Flanged PN16/40 Stainless steel CF8M (1.4408) Full 2-piece body DN100 - 4'' Spring return | 274470016106 | S1003094 |
€1,781.46
(excl. btw)
|
add to cart |
